Energy Saving Complete Copper 380V Motor
YE3-100L-4 is our hot sale high efficiency three-phase asynchronous motor, which is based on the latest development of fully enclosed sell-fan air-cooled squirrel-cage ultrahigh-efficiency three-phase asynchronous motors based on GB/T28575-2012. The 3-level energy efficiency level in the "Energy Efficiency Limit Values and Energy Efficiency Levels of Asynchronous Motors" is in line with lE3 in the energy efficiency level in lEC80034-30, and it is in the first-class level with the most advanced American NEMA ultra-efficient motor.

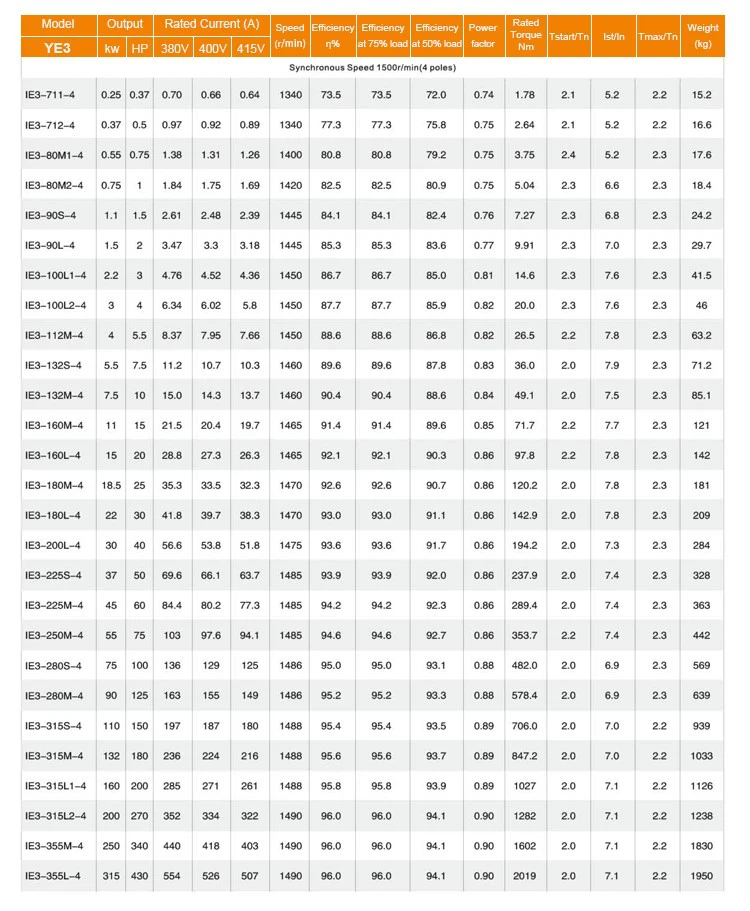

The power range of this series of motors: 0.12KW-315KW: the center height of the base: H80-355.
And also the installation ways:B3/B5/B34/B35
Operating Conditions
| Ambient temperature | -15℃<0<40℃ |
| Altitude | not exceeding 1000m |
| Rated voltage | 380V or any voltage between 220-760V |
| Rated frequency | 50Hz,60Hz |
| Protection class | lP55 |
| Insulation class | F/H |
| Cooling method | 1C0141 |
| Duty | S1(continuous) |
| Connection | Star-connection for up to 3kw, delta-connection for 4kw and above. |




Q: Can I order some sample for our testing?
Q: Can you customize my product in special shape?
Q: How can you make sure we will receive the product with high quality?
