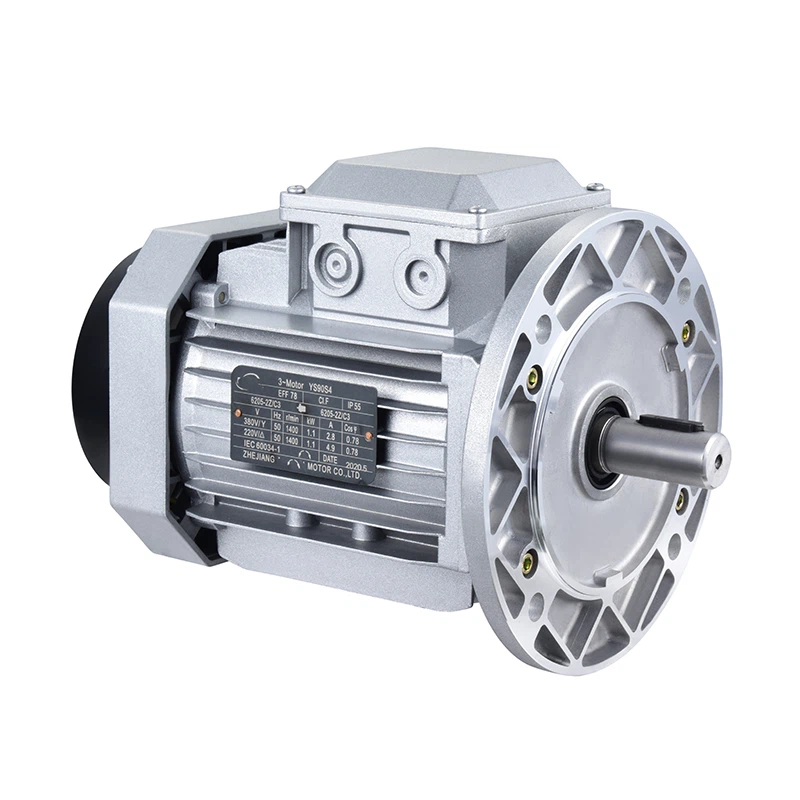

YS 2800RPM 2 Poles Aluminum Frame AC Motor
YS series aluminum housing three-phase asynchronous motors adopted the newest design and high quality material, it is conformity with the IEC34-1 Standards. The efficiency of the motors can meet EFF2 and EFF1 if requested. It has good features like perfect performance, low noise slight vibration,reliable runing,good appearance,small volume and light weight.
Operating Conditions
| Ambient temperature | -15℃<0< 40℃ |
| Altitude：not exceeding 1000m | |
| Rated voltage | 380V,220V-760V is available |
| Rated frequency | 50Hz/60Hz |
| Protection class | IP54/55 |
| Insulation class | Class B/F/H |
| Cooling method | ICO141 |
| Duty | S1(continuous) |
| Poles：2/4/6/8 |
|
TYPE |
POWER(KW) |
RATED SPEED(r/min) |
EFFICENCY |
POWER FOCTOR |
RATED CURRENT(A) |
RATED TORQUE(Nm) |
|
YS-5612 |
0.09 |
2680 |
62.0 |
0.68 |
0.32 |
0.307 |
|
YS-5622 |
0.12 |
2660 |
67.0 |
0.71 |
0.38 |
0.410 |
|
YS-6312 |
0.18 |
2710 |
69.0 |
0.75 |
0.53 |
0.614 |
|
YS-6322 |
0.25 |
2730 |
72.0 |
0.78 |
0.68 |
0.853 |
|
YS-7112 |
0.37 |
2760 |
73.5 |
0.80 |
0.96 |
1.26 |
|
YS-7122 |
0.55 |
2770 |
75.5 |
0.82 |
1.35 |
1.88 |
|
YS-8012 |
0.75 |
2770 |
76.5 |
0.85 |
1.75 |
2.56 |
|
YS-8022 |
1.1 |
2800 |
77.0 |
0.85 |
2.55 |
3.75 |
|
YS-90S-2 |
1.5 |
2840 |
78.5 |
0.85 |
3.42 |
5.04 |
|
YS-90L-2 |
2.0 |
2840 |
81.0 |
0.86 |
4.80 |
7.40 |
|
YS-5614 |
0.06 |
1320 |
56.0 |
0.58 |
0.28 |
0.41 |
|
YS-5624 |
0.09 |
1320 |
58.0 |
0.61 |
0.39 |
0.614 |
|
YS-6314 |
0.12 |
1350 |
60.0 |
0.63 |
0.48 |
0.819 |
|
YS-6324 |
0.18 |
1350 |
64.0 |
0.66 |
0.65 |
1.23 |
|
YS-7114 |
0.25 |
1350 |
67.0 |
0.68 |
0.83 |
1.71 |
|
YS-7124 |
0.37 |
1350 |
69.5 |
0.72 |
1.12 |
2.52 |
|

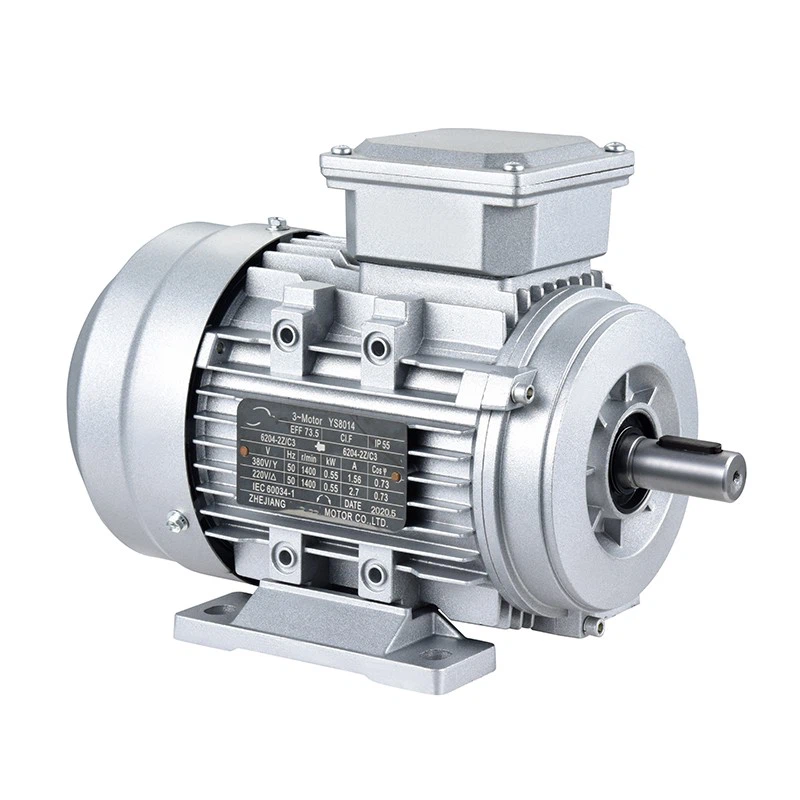

YS-8014 |
0.55 |
1380 |
73.5 |
0.73 |
1.56 |
3.75 |
|
YS-8024 |
0.75 |
1390 |
75.5 |
0.75 |
2.01 |
5.12 |
|
YS-90S-4 |
1.1 |
1400 |
78.0 |
0.78 |
2.75 |
7.40 |
|
YS-90L-4 |
1.5 |
1400 |
79 |
0.79 |
3.65 |
10.1 |
|

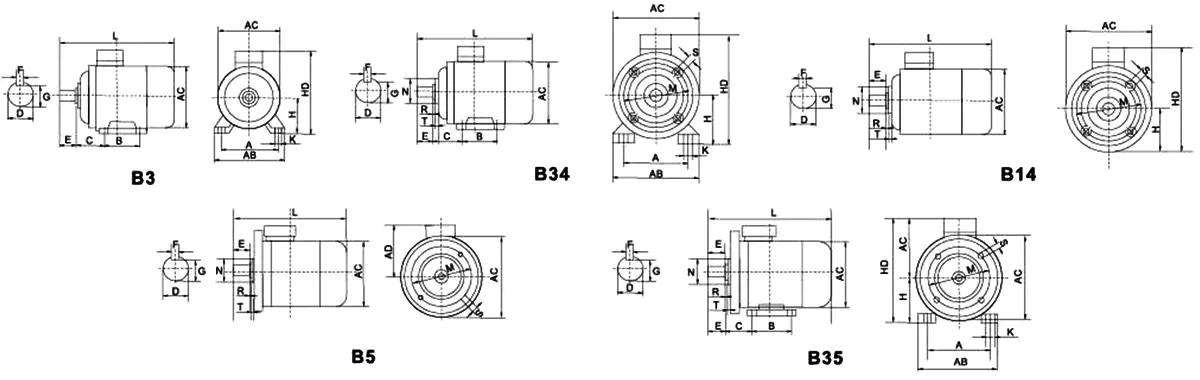

Frame NO |
Installation Size |
Installation Size IMB14 |
Installation Size IMB5 |
Overall Dimension |
||||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
S |
T |
M |
N |
P |
S |
T |
AB |
AC |
AD |
HD |
L |
|
|
56 |
90 |
71 |
36 |
9 |
20 |
3 |
7.2 |
56 |
6 |
65 |
50 |
80 |
M5 |
2 |
100 |
80 |
120 |
8.5 |
3 |
112 |
108 |
93 |
149 |
192 |
|
63 |
100 |
80 |
40 |
11 |
23 |
4 |
8.5 |
63 |
7 |
75 |
60 |
90 |
M5 |
2.5 |
115 |
95 |
140 |
10 |
3 |
120 |
120 |
97 |
160 |
211 |
|
71 |
112 |
90 |
45 |
14 |
30 |
5 |
11 |
71 |
7 |
85 |
70 |
105 |
M6 |
2.5 |
130 |
110 |
160 |
10 |
3.5 |
135 |
140 |
104 |
175 |
240 |
|
80 |
125 |
100 |
20 |
19 |
40 |
6 |
15.5 |
80 |
10 |
100 |
80 |
120 |
M6 |
3 |
165 |
130 |
200 |
12 |
3.5 |
155 |
160 |
113 |
193 |
284 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
M8 |
3 |
165 |
130 |
200 |
12 |
3.5 |
175 |
175 |
123 |
213 |
316 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
115 |
95 |
140 |
M8 |
3 |
165 |
130 |
200 |
12 |
3.5 |
175 |
175 |
123 |
213 |
341 |
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
130 |
110 |
160 |
M8 |
3.5 |
215 |
180 |
250 |
15 |
4 |
200 |
195 |
157 |
257 |
377 |
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
130 |
110 |
160 |
M8 |
3.5 |
215 |
180 |
250 |
15 |
4 |
226 |
220 |
163 |
275 |
392 |
|
132S |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
165 |
130 |
200 |
M10 |
3.5 |
265 |
230 |
300 |
15 |
4 |
265 |
265 |
183 |
315 |
463 |
|
132M |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
165 |
130 |
200 |
M10 |
3.5 |
265 |
230 |
300 |
15 |
4 |
265 |
265 |
183 |
315 |
501 |
|
160M |
254 |
210 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
215 |
180 |
250 |
M12 |
4 |
300 |
250 |
350 |
19 |
5 |
310 |
320 |
223 |
383 |
606 |
|
160L |
254 |
254 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
215 |
180 |
250 |
M12 |
4 |
300 |
250 |
350 |
19 |
5 |
310 |
320 |
223 |
383 |
650 |
Why choose us as your partner?
Here are a few reasons we listed as follows：
1.Firstly we provide sincere and professional service for every customer.
2.Our Manufacturer is a professional factory for Electric Motor in China.
3.We have reasonable price with good quality.
4.Full of export experiences for more than 7 years.
5. Every motor 100% tested for the quality prior before shipment.
6. We welcome OEM/ODM, any special motors can be designed according to customers' requirements.
7.Provide one year warranty service and good after-sales service.
